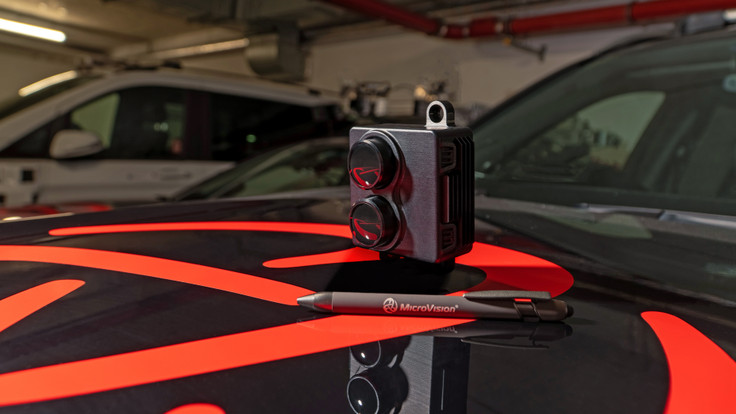

MOVIA™ S
Proven lidar performance in a smaller, lighter design for short-range automotive applications
No moving parts
4D Output:
Point cloud & intensity image
Variable scan frequency
Class 1 laser product
High resolution
Protected from environmental influences
Low power consumption
Compact design
Key Features
- Small housing and wide field of view
- Developed according to automotive-grade standards
- Solid-state solution
- Robust and reliable: no moving parts
- Transceiver resolution of 128 columns x 80 rows
- Sequential flash scanning captures environment hundreds of times, row by row
- Adverse weather performance due to multi-echo capability
- Easy integration into design-critical components, such as bumpers, thanks to small optical window
MOVIA™ S Level 4
automated PARKing
MOVIA™ S Level 3
urban driving
Technical Data
Field of view
MOVIA™ S features a 150 degree optic, allowing a very wide field of view to advance autonomous driving in urban scenarios.
Depending on the use case, MOVIA™ S allows to tilt the vertical field of view in the range of ±22° without changing the tilt of the sensor.
| Technology / Laser / Optical | Short range (150°) |
|---|---|
| Max. field of view (h x v) | 150° x 81° |
| Max. angular resolution (h x v) | 0.95° x 0.76° |
| Design range* | 14 m |
*10% target at 100 kLux ambient light
